473nm 2W Blue Laser for Raman Spectroscopy and holography

FOB Reference Price:Get Latest Price
$13,500.00 - $18,500.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jilin, China (Mainland)
Brand Name:
CNI
Model Number:
MBL-W-473
Wavelength:
473nm
Output power:
1500mW-2000mW
Transverse mode:
TEM00
Operating mode:
CW
M2 factor:
<1.5
Beam divergence, full angle (mrad):
<1. 0
Beam diameter at the aperture (mm):
~3. 0
Modulation option:
TTL /analg 1KHz, 10KHz, 30KHz;
Expected lifetime (hours):
10000
Warranty period:
1 year
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Static free plastic bag, Protective packing
Port
Changchun
Lead Time :
1-2weeks after payment
Product Description

473nm 2W Blue Laser for Raman Spectroscopy and Holography

All solid state 473nm blue laser is made features of ultra compact, long lifetime and easy operating, which is used in fluorescence sensors, Raman spectrum, laser printing, holography, laser display, submarine communication, biomedicine, laser lighting show, etc.

Specifications

Wavelength (nm)
473±1
Operating mode
CW
Output power (mW)
>1500, 1600, …, 2000
Power stability (rms, over 4 hours)
<3%, <5%, <10%
Transverse mode
TEM00
M2 factor
<1.5
Beam divergence, full angle (mrad)
<1.0
Beam diameter at the aperture (1/e2,mm)
~3.0
Warm-up time (minutes)
<10
Polarization ratio
>100:1
Beam height from base plate (mm)
93.5
Operating temperature (℃)
20~30
Power supply (90-264VAC)
PSU-W-LED            PSU-W-FDA
TTL / Analog modulation
TTL or Analog with 1Hz-1KHz 1KHz-10KHz, 10KHz-30KHz optional
Expected lifetime (hours)
10000
Warranty period
1 year

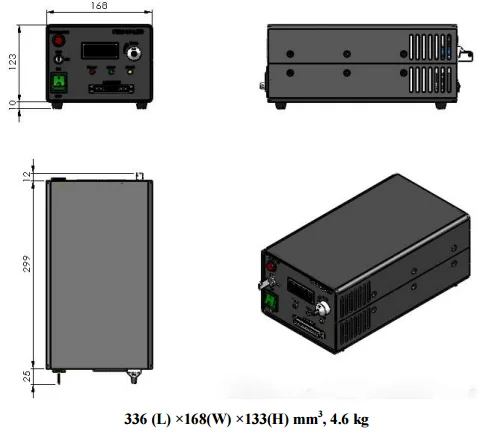

Dimensions
Certifications
Packing & Delivery
Company Information

    Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.

    CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.

Customer Visit
Exhibitions
Contact Us

FAQ

1. What about the delivery?

      TNT     UPS     FEDEX     DHL

2. What about the warranty?

       For 1 year

3.How to pay?

      T/T     Western Union


4. How to visit our factory?

 You can contact us by following ways to apply for visiting our factory:

(1) International Tel: +86-431-85603799

(2) Fax: +86-431-87020258

5. How to find more product of our company?

 Search our web to find more products(including more contact way )
 www.cnilaser.com
