532nm Green Laser for Confocal Laser Scanning Miscroscopy

FOB Reference Price:Get Latest Price
$1,300.00 - $2,800.00 / Unit | 1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jilin, China
Model Number:
MGL-FN-532
Brand Name:
CNI
color:
Green
Transverse mode:
CW
Wavelength (nm):
532±1
Warm-up time (minutes):
<10
Polarization ratio:
>100:1 (0 or 90 degree)
Operating temperature (℃):
10-35℃
Output power (mW):
>1, 5, 10, 20, ... , 1000 or >1000, 1100, ..., 1500
M2 factor:
<1.2
Power stability (rms, over 4 hours):
<1%, <2%, <3%
Warranty period:
1 year
Supply Ability
Supply Ability:
1000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Static free plastic bag, Protective packing
Port
ChangChun
Lead Time :
Shipped in 2 weeks after payment
Product Description

532nm Green Laser for Confocal Laser Scanning Miscroscopy

Confocal Laser Scanning Microscopy (CLSM) consists of confocal microscopy, laser and data acquisition system. It is a combination of the optical microscope, the modern laser technology, Raman detection technology, scanning control technology, computer image processing technique and fluorescence labeling technique. Its application and research field include the observation of life living cell structure and specific molecular, Ion biological changes, pharmacology, genetics, spectroscopy and related subjects. Specific applications such as: stochastic optical reconstruction microscopy(STORM), fluorescence lifetime-transient scanning(FLITS), fluoresence recover after photobleaching(FRAP), stimulated emission depletion(STED)etc.

Features

■ CNI self-developed high reliability lasers. User requirements can be realized.

■ CNI can provide different lasers with free space and Multi-wavelength single-mode fiber coupling, and related accessories.

■ System is stable and reliable. Customized solution can be provided upon request.

Laser Related

  Wavelengths: 266nm, 355 nm, 360 nm, 375 nm, 405 nm, 442 nm, 445 nm, 457 nm, 465 nm, 473 nm, 488 nm, 515 nm, 520 nm, 532 nm, 556 nm, 561 nm, 589 nm, 593 nm, 633 nm, 637 nm、640 nm, 671 nm、690 nm, 720 nm, 750 nm, 785 nm, 808 nm, 1064 nm, 2200 nm etc. Single longitudinal mode, narrow linewidth laser available; Multi-wavelengths laser systems also available; New laser-wavelength can be customized.

Application of CNI laser for Confocal Laser Scanning Microscopy from customers

(1)Antimicrobial Photodynamic Efficiency of Novel Cationic Porphyrins towards Periodontal Gram-positive and
           Gram-negative Pathogenic Bacteria

           (Photochemistry and Photobiology, Volume 90, Issue 3, pages 628–640, May/June 2014) (CNI-635nm)

(2)Calcium Dynamics in Root Cells of Arabidopsis thaliana Visualized with Selective Plane Illumination Microscopy
          (PloS one, 2013, 8(10): e75646.) (CNI-442nm)


(3)Fluoxetine induces vasodilatation of cerebral arterioles by co-modulating NO/muscarinic signalling

          (Journal of Cellular and Molecular Medicine, Volume 16, Issue 11, pages 2736–2744, November 2012) (CNI-532nm)


(4)Fluorescence ghost imaging with pseudothermal light (Optics Letters, Vol. 36, Issue 16, pp. 3302-3304 (2011)) (CNI-473nm)


(5)Improved Temporal Resolution and Linked Hidden Markov Modeling for Switchable Single-Molecule FRET

         (ChemPhysChem, Volume 12, Issue 3, pages 571–579,February 25, 2011) (CNI-532nm)


(6)Near-field Raman imaging using optically trapped dielectric microsphere

         (Optics Express, Vol. 16, Issue 11, pp. 7976-7984 (2008)) (CNI-532nm)


(7)Ultra-high resolution Raman imaging by optically trapped dielectric microsphere

        (NanoScience+ Engineering. International Society for Optics and Photonics, 2008: 70330E-70330E-7) (CNI-532nm)


(8)Luminescence enhancement in nanocomposite consisting of polyvinyl alcohol incorporated gold nanoparticles and Nile blue 690 perchlorate (Applied Optics, Vol. 53, Issue 31, pp. 7177-7181 (2014)) (CNI-532nm)

Accessories

Fiber Patch Cables

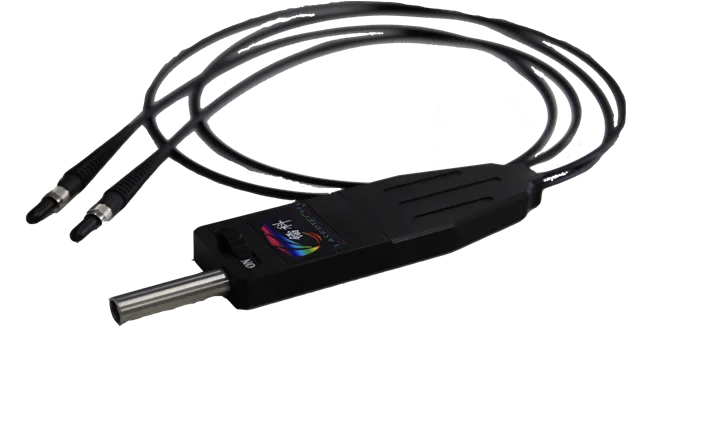

Raman Probe
                                 Laser Goggles

                       Laser Power Meter

                          2-in-1 laser and fiber combiner

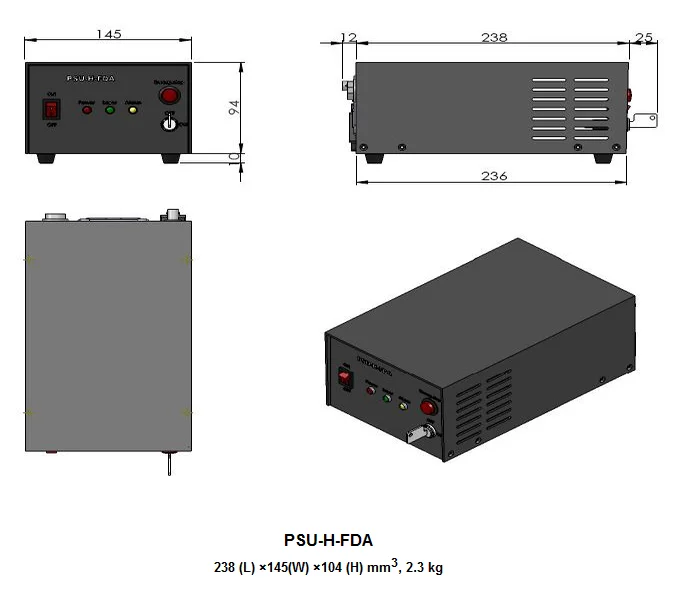

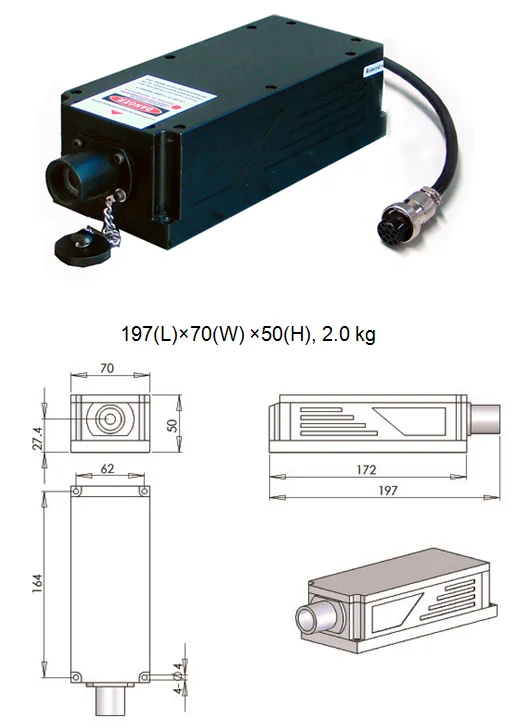

Dimensions

SPECIFICATIONS

Wavelength (nm)
532±1
Operating mode
CW
Output power (mW)
>1, 5, 10, 20, … , 1000
>1000, 1100, …, 1500
Power stability (rms, over 4 hours)
<1%, <2%, <3%
<2%, <3%
Transverse mode
TEM00
M2factor
<1.2(<1.1 optional)
<1.2
Beam diameter at the aperture (1/e2, mm)
~2.0
Beam divergence, full angle (mrad)
<1. 5
Beam height from base plate (mm)
27.4
Polarization ratio
>100:1 Horizontal±5 degree (Vertical Optional)
Warm-up time (minutes)
<10
Pointing stability after warm-up (mrad)
<0.05
Operating temperature (℃)
10~35
Power supply (90-264VAC)
PSU-H-LED
PSU-H-FDA

Modulation option
TTL on/off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz; and Analog

modulation option
Expected lifetime (hours)
10000
Warranty
1 year
Certifications
Packing & Delivery
Company Information

    Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.

    CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
