Narrow linewidth Infrared Diode 785nm Laser for Raman Spectroscopy

  • >=1
    $2,210.00
Model Number:
FC-D-785-200mw-3% power stability FC-D-785-300mw-3% power stability FC-D-785-450mw-3% power stability FC-D-785-200mw-2% power stability FC-D-785-200mw-1% power stability FC-D-785-300mw-2% power stability FC-D-785-300mw-1% power stability FC-D-785-450mw-2% power stability FC-D-785-450mw-1% power stability
Lead Time:
Quantity() 1 - 1 >1
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jilin, China
Brand Name:
CNI
Model:
FC-D-785 (Spectrum Stabilized)
Wavelength:
785nm±0.3
Output power:
1-450mW
Fiber connector:
SMA905
Power consumption:
3.0A@ 5V or 7-15VDC
Noise of amplitude (rms, 1~20MHz):
<0.5%, <1%
Output fiber (optional):
100 um@ 0.22 NA
Warranty:
1 year
TTL modulation:
Optional, 0-200KHz
Rise time:
<10us
Packaging & Delivery
Lead Time :
Quantity() 1 - 1 >1
Est. Time(days) 25 To be negotiated
Video Description
Product Description

Narrow linewidth Infrared Diode 785nm Laser for Raman Spectroscopy

FC-D-785 laser module is designed specially for Raman spectroscopy, which have integrated laser drivers and thermoelectric coolers. Its compact dimension and convenient functions make it optimal for industrial and medical applications.

Specifications

Model
FC-D-785 (Spectrum Stabilized)
Wavelength (nm)
785±0.3
Spectral line width (nm)
0.1, 0.2, optional
Output power after fiber (mW)
1-450
Central wavelength stability (rms, over 2 hours) (pm)
<10
Power stability (Pk-pk, over 4 hours)
<3%
Output fiber (optional)
100 µm @ 0.22 NA
Noise of amplitude (rms, 1~20MHz)
<0.5%, <1%
Humidity
5-95%
Connector
SMA905
Operating mode
CW
Warm-up time (minutes)
<5
Operating temperature (℃)
-10~40
Power consumption
3.0A@ 5V or 7-15VDC
TTL modulation
Optional, 0-200KHz
Rise time
<10µs
Expected lifetime (hours)
10000
Warranty
1 year

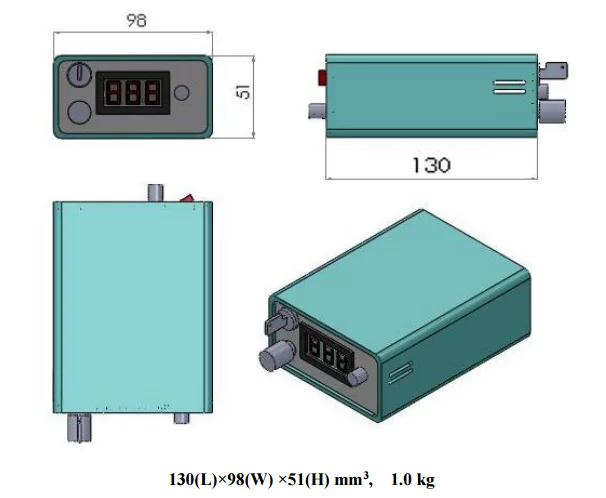

Dimensions

Accessory(Adaptor)


Certifications
Packing & Delivery
Company Information

    Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.

    CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
